Products

Clamps (Doble Bolt Clamps)

T- Bolt Clamp

Heavy duty clamp having high band tension; designed for sealing suction & pressure lines. Smooth underside & rolled up band edges are gentle on hose & reduce risk of leakages. Uniquely designed bridge for clamp provides optimal hose protection. Hollow rollers provide high uniform torque and eliminate chances of damage to the band. Contains three welding points for increased security for larger sizes.

Heavy duty clamp for heavy-gauge reinforced hoses used for agricultural and industrial usage. Main Applications include vehicle construction, agriculture machines & vehicles, ship building, recycling, biogas, industrial plant constructions, rail vehicles and construction industry.

Double Bolt Clamp

N-Type double bolt clamps have strong clamping brackets welded onto the band providing the clamp a high clamping force and optimum sealing. Rolled up band edges are gentle on the hose and reduce risk of leakages. Clamps contain two uniquely designed bridges for optimal hose protection. The double bolts allow for easy fitting on prefixed hoses. Hexagonal head bolt makes it easy to tighten and loosen the clamp with ordinary tools.

Ideal for sealing rubber and plastic hoses, rubber collars on pipe ends or hose connecting pipes. Main applications include fire brigade hoses, construction machinery, ship building and tightening of tanks, dynamos, pipes, cables etc

Double Bolt Clamp

Available with us is a wide range of Double Bolt Clamps, which is designed in accordance with international quality standards. The range that we are offering finds application in diverse industries, such as ceramic, chemical, mining and fluid control. Furthermore, it can be customized as per the specifications stated by our clients.

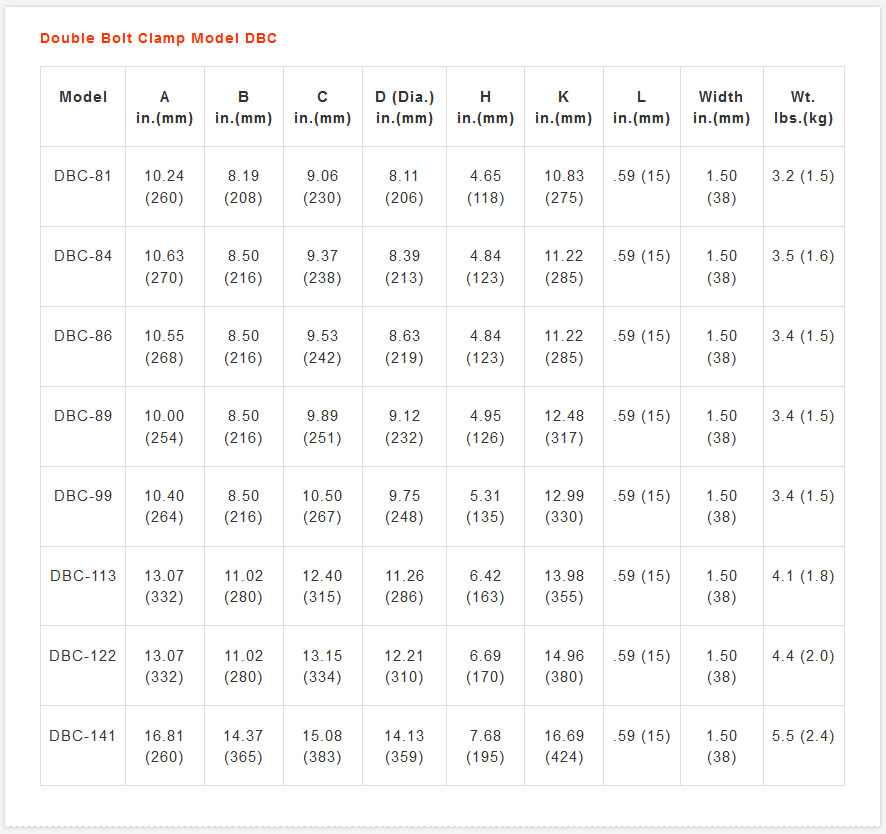

Double Bolt Clamp Model DBC

Model

A in.(mm)

B in.(mm)

C in.(mm)

D (Dia.) in.(mm)

H in.(mm)

K in.(mm)

L in.(mm)

Width in.(mm)

Wt. lbs.(kg)

DBC-81

10.24 (260)

8.19 (208)

9.06 (230)

8.11 (206)

4.65 (118)

10.83 (275)

.59 (15)

1.50 (38)

3.2 (1.5)

DBC-84

10.63 (270)

8.50 (216)

9.37 (238)

8.39 (213)

4.84 (123)

11.22 (285)

.59 (15)

1.50 (38)

3.5 (1.6)

DBC-86

10.55 (268)

8.50 (216)

9.53 (242)

8.63 (219)

4.84 (123)

11.22 (285)

.59 (15)

1.50 (38)

3.4 (1.5)

DBC-89

10.00 (254)

8.50 (216)

9.89 (251)

9.12 (232)

4.95 (126)

12.48 (317)

.59 (15)

1.50 (38)

3.4 (1.5)

DBC-99

10.40 (264)

8.50 (216)

10.50 (267)

9.75 (248)

5.31 (135)

12.99 (330)

.59 (15)

1.50 (38)

3.4 (1.5)

DBC-113

13.07 (332)

11.02 (280)

12.40 (315)

11.26 (286)

6.42 (163)

13.98 (355)

.59 (15)

1.50 (38)

4.1 (1.8)

DBC-122

13.07 (332)

11.02 (280)

13.15 (334)

12.21 (310)

6.69 (170)

14.96 (380)

.59 (15)

1.50 (38)

4.4 (2.0)

DBC-141

16.81 (260)

14.37 (365)

15.08 (383)

14.13 (359)

7.68 (195)

16.69 (424)

.59 (15)

1.50 (38)

5.5 (2.4)

Double Bolt Pipe Clamps

We deal with a quality tested array of Double Bolt Pipe Clamps. The Double Bolt Pipe Clamps we offer are highly demanded by the clients for their availability in various sizes and specifications. Moreover, we assure our clients that a quality tested array is delivered from our end.

Features:

Compatible

Best grade materials

High performance
