Products - Boiler Fittings

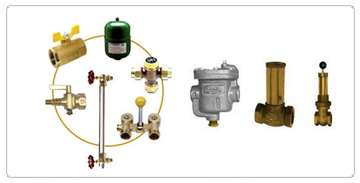

Boiler Accessories

Our quality products are widely used in Power plants, Paper industry and many other similar areas. Additionally, backed with a team of expert engineers, we have all the requisite tools and equipment to deliver accurate erection services for any site. Moreover, our services can be customized as per the specific requirement of our clients. We offer our services at highly cost effective prices. The offered services are effective in keeping the spare parts of boilers free from defects and confer them a long service life. These are extensively used in various industrial purposes.

Features
  • Long-lasting
  • Affordable
  • Designed to perfection

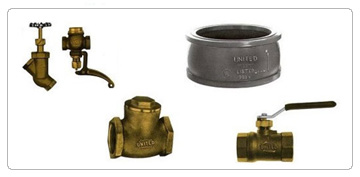

Boiler Valves

We are the dealers of various boiler parts. cast iron globe steam stop valve flanged ends straight pattern as per bs : 5152 bolted bonnet, outside screw & yoke type, rising stem with back seat arrangement, renewable stainless steel (aisi 410) trim parts, hand wheel operated, flanged ends to bs : 4504 part-1table 16/11/din 2533 pn-16 raised face body test pressure : 26kg/cm hyd. Seat test pressure : 16kg/cmsteam line up to 13 kg/cm g, max. Working temp. 220 chyd.

Steam Boiler

We are the dealers of various steam boiler parts cast steel (astma-216 gr wcb) globe valve straight patterns : 5160 / din 2401 pn-40 bolted bonnet outside screw and yoke type, rising stem with backseat arrangement, S. S. (aisi-410) trim, hand wheel operated, flanged ends as perbs : 4504 part - 1, table 40 / 1 / din 2545 pn - 40 raised face testing body tested pressure : 60 bar g : hyd. Max. Steam working pressure : 20 bar g at 428 cseat and back seat test pressure : 40 bar g hyd.

Industrial Boiler

We deal with cast steel parallel slide blow off valve (astma-216 gr wcb)with monel /s. S. Seats, rack & pinion operated with operating key, Flanged ends to bs : 10 table ‘j’ suitable for max. Bop 350 psig steam max. Working temp 454 c tested to 700 p sig hyd. Testing body tested pressure : 700 psig Hyd. Max. Steam working test pressure : 350 p sig

Stub Ends

Reliable supplies wide range of stub ends (pipefitting) made of materials - exotic metals, nickel, cupro-nickel, Stainless Steel etc., of various grades that can be used for various applications. Stub ends are tested and verified for durability, accuracy and precision.

Material

Titanium stub end, Tantalum, Nickel, Cupro - nickel, Zirconium, Hastelloy, Incolloy, HR Alloy, Alloy 20, Monel, Inconel, stainless Steel, Niobium, Nimonics, duplex stubend

Standard

MSSP

Construction

SEAMLESS

Classess In Stubend

S5s, S10, S20, S40, STD, S80, XS, S 160, XXS

Stubend Type

LONG RADIUS / SHORT RADIUS

Elbows

We provides forged, seamless & welded elbows (pipe fitting) of types 90° Elbows, 45° Elbows, 180° Elbow of socket weld, threaded type to ANSI B 16.5 from classes 2000 to 9000 and Schedules from 10 to 160.

Material

Titanium elbow, Tantalum, Nickel, Cupro - nickel, Zirconium, Hastelloy, Incoloy, HR Alloy, Alloy 20, Monel, Inconel, stainless Steel, Niobium, Nimonics,duplex elbow, super duplex elbow

Standard

ANSI, BS

Construction

Forged (90degree, 45 degree)
Seamless (90degree, 45 degree, 180 degree)
Welded (90degree, 45 degree ,180 degree)

Classess

2000 lbs, 3000 lbs, 6000 lbs, 9000 lbs (Forged)
S5s, S10, S20, S40, STD, S80, XS, S 160, XXS

Tees

We stocks wide range of tees (pipefitting) made of exotic metals, nickel, nickel alloys, Stainless Steel etc., of various grades.Tees (branch outlets) are manufactured as Equal tees and Reducing tees.Equal tees are exactly that, all three ends are of the same size. Reducing tees come with a combination of different outlet sizes.
We can supply tees (pipe fittings) of special type made according to drawing on request.

Forged Tees
(Seamless Welded)

Equal Tee Socket weld, Equal Tee Threaded, Reducing Tee Threaded, Reducing Tee Socket Weld.

Material

Titanium tee, Tantalum, Nickel tee, Cupro - nickel tee, Zirconium, Hastelloy, Incolloy, HR Alloy, Alloy 20, Monel, Inconel, stainless Steel, Niobium, Nimonics, duplex tee, super duplex tees.

Standard

ANSI,BS

Construction

Forged:-(Socket Weld Equal Tee, Reducing Tee, Threaded Equal Tee) Classes In tees:- 2000Lbs, 3000Lbs, 6000Lbs, 9000Lbs. Welded Seamless:- (Equal Tee Reducing Tee) Classes In tees:- S5s,S10,S20,S40,STD,S80,XS,S 160,XXS

Reducer

Reducers are tested and verified for durability, accuracy and precision. The various advantages include keeping big pipes and small pipes together as well as reducing noise and vibration at the same time.

Types Available

Concentric Eccentric

Material

Alloy Steel, Carbon Steel Stainless Steel, Butt Weld.

Classes

2000 lbs, 3000 lbs, 6000 lbs, 9000 lbs S5s, S10, S20, S40, STD, S80, XS, S 160, XXS

Steel End Caps

We offer a wide range of steel end caps that are used to blind the pipeline. They help to stop the flow from one end in a pipeline.

Material

Alloy Steel, Carbon Steel Stainless Steel, Butt Weld Socket Weld.

Construction

Forged Seamless

Classes

2000 lbs, 3000 lbs, 6000 lbs, 9000 lbs S5s, S10, S20, S40, STD, S80, XS, S 160, XXS

Steel Pipe Nipple

We supply nipples for piping assemblies that are available in different diameters and thicknesses. This can be used as an extension to any pipe assembly.

Material

Titanium nipple, Tantalum, Nickel nipple, Cupronickel, Zirconium, Hastelloy, Incolloy, HR Alloy, Alloy 20, Monel, Inconel, stainless Steel, Niobium, Nimonics, duplex nipple, super duplex nipple.

Standard

ANSI, BS, SAE

Construction

Forged socket weld nipple, Forged threaded nipple.

Classes

2000 lbs, 3000 lbs, 6000 lbs, 9000 lbs

RACER VALVES

Valves

We deal with a wide range of Valves that are widely appreciated for their easy usage and operations. These valves are used in various industries including petrochemical, textile, pharmaceutical, engineering and other industry to maintain flow of high volume, high pressure and high temperature. We offer these valves at most reasonable prices to the clients and these valves are made from high quality metals and sophisticated technology.

Alloy Valves

We deal with a comprehensive range of Stainless Steel (Alloy Steel) Ball Valves

Ball Valve Components

We deal with Racer Valves also specialized in Angle check valve components, Ball Valve Components, Control Valve Components, Gate Valve components and almost all kind of industrial valves and valves components.

Dairy Valves

We are the dealers of Boiler Valve. Our customers can avail from us a quality range of pressure seal gate valves at industry leading prices.

Atam Boiler Fittings

We are offering a wide range of Boiler Fitting that is specially designed to bear extreme pressure and temperature. Available in different specifications, these products carry wide industrial applications. We precisely design them using advance technology and designs which can also be customized as per the application needs of the customers.

Features:
  • Cost effective
  • Best quality
  • Easy maintenance
